ARID-Ice® Arena Dehumidification (continued)







FEATURES AND BENEFITS

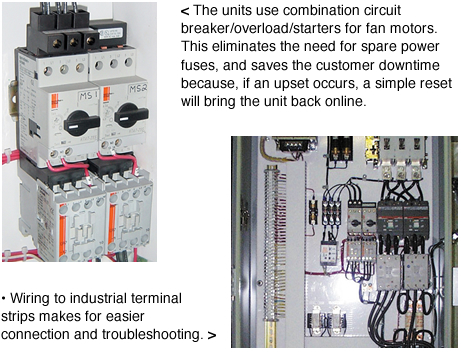

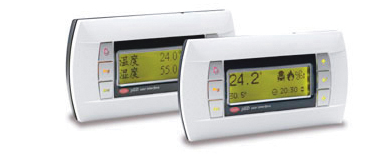

  • Our standard is a microprocessor controller for reactivation rate and safeguard functions, and also for heating and cooling functions if these options are present. Terminal-strip connection points are included for customer use for alarming, monitoring, and for communication with a building management system. (Our microprocessor is a BAC-Net compatible device, and requires a gateway device to communicate.)
  • Each unit is ETL Listed and approved as a unit. Every item shipped carries a full ETL approval including all options in compliance with the current mechanical code. We also have the ETL-C listing for Canadian projects. On European projects, we can provide country-specific C-E approvals.


  • The microprocessor reactivation controller maintains a constant burner-output temperature, so burning the desiccant rotor is unlike other manufactures. In addition, modulating via a reset schedule minimizes energy use. Full-rated performance is available in cool weather because it is not necessary to limit the firing rate as other manufacturers do.

< Our reactivation burner flame safeguard system is an industrial Honeywell R7895A instead of a commercial-or residential style "ignition module." The standard gas train on gas-fired units is an ANSI type, and includes inlet regulator, automatic main and pilot valves, an electronic modulating valve, in addition to safety manual valves.


  • Reactivation temperature sensors are 500°F rated Platinum thermistors.
  • A full-perimeter sprocket with a #40 molly chain drives our desiccant rotor. This is more durable than any other system on the market. >






< Stabilized silica gel is permanently bonded to a low specific-heat substrate for long-lasting dehumidification performance at maximum efficiency.
< Our desiccant rotor seals are dual contact, Viton extruded seals, designed to extend the life of the unit. This is the most durable seal in the industry.



  • Heavy duty blowers are backward inclined or forward curved nonover-loading rated for total static pressure. Wherever possible, blowers are directly coupled to fans to eliminate belts and external bearings. >
  • Standard filters provided are minimum 30% efficient industrial pleated-style to insure a clean desiccant rotor. Additional filtration is available.



< Our standard unit construction is double-wall, and insulated. It is very rugged, and includes airtight, gasketed access doors for access to components.



  • All doors are equipped with locking handles with common keyed access to prevent unauthorized access.
  • Multiple components and configurations provide a versatile unit to meet every application requirement.


  ARID-Ice® Arena Products

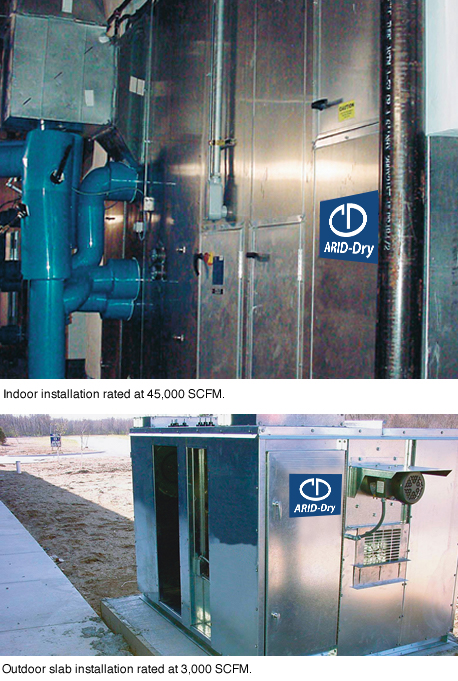

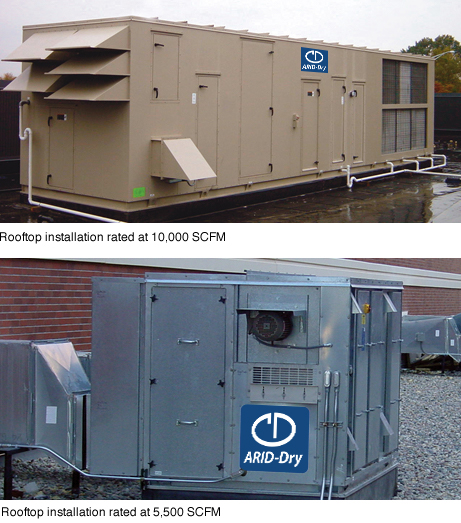

ARID-Ice is the premier desiccant dehumidifier for indoor ice arenas. Our units are equipped to reduce humidity levels, eliminate indoor condensation and fog, prevent mold, reduce refrigeration costs and improve indoor air quality, these systems utilize natural gas, steam or electric reactivation. We have provided equipment for over 500 skating surfaces throughout North America from 600 to 45,000 SCFM
