ARID-Dry® Corrosion Protection for Industrial Storage
and Surface Coatings - Temporary Humidity Control (continued)



FEATURES AND BENEFITS

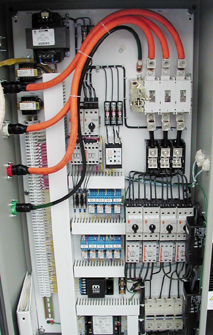

  • Our standard is a microprocessor controller for reactivation rate and safeguard functions, and also for heating and cooling functions if these options are present. Terminal-strip connection points are included for customer use for alarming, monitoring, and for communication with a building management system.

  • Each unit is ETL Listed and approved as a unit. Every item shipped carries a full ETL approval including all options in compliance with the current mechanical code. We also have the ETL-C listing for Canadian projects. On European projects, we can provide country-specific C-E approvals.

  • The microprocessor reactivation controller maintains a constant burner-output temperature, so burning the desiccant rotor is unlike other manufactures. In addition, modulating via a reset schedule minimizes energy use. Full-rated performance is available in cool weather because it is not necessary to limit the firing rate as other manufacturers do.
  < Our reactivation burner flame safeguard system is an industrial Honeywell R7895A instead of a commercial-or residential style "ignition module." The standard gas train on gas-fired units is an ANSI type, and includes inlet regulator, automatic main and pilot valves, an electronic modulating valve, in addition to safety manual valves.

  • Reactivation temperature sensors are 500°F rated Platinum thermistors.

  • The units use combination circuit breaker / overload / starters for fan motors. This eliminates the need for spare power fuses, and saves the customer downtime because, if an upset occurs, a simple reset will bring the unit back online. >



  • Electric heater banks with individual circuit breaker protection.

    < Wiring to industrial terminal strips makes for easier connection and troubleshooting.

  • A remote humidistat with cord. >


  • Graphic Function Display annunciation panel to provide indication of operation status. >




< A full-perimeter sprocket with a #40 molly chain drives our desiccant rotor. This is more durable than any other system on the market.

  < Stabilized silica gel is permanently bonded to a low specific-heat substrate for long-lasting dehumidification performance at maximum efficiency. The desiccant rotor rim and cassette are Stainless Steel for durability and strength
.
< Our desiccant rotor seals are dual-contact, Viton extruded seals, designed to extend the life of the unit. This is the most durable seal in the industry.

  • Heavy duty blowers are backward inclined or forward curved nonover-loading rated for total static pressure. Wherever possible, blowers are directly coupled to fans to eliminate belts and external bearings. >


  < Optional, high static pressure control damper.

  • Protective guard over blower discharge area. >

  • Removable shipping covers to protect unit in
    shipment. >



  • Multiple components and configurations provide a versatile unit to meet every application requirement.

  • The standard unit construction is G-90 galvanized Steel, double-wall, and insulated. It is very rugged, and includes airtight, gasketed access doors for access to components.

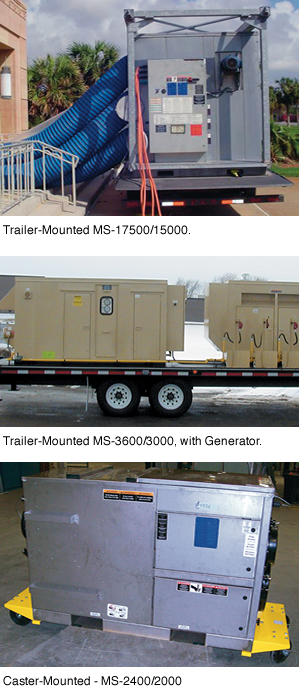

ARID-Dry® Mobile Products

Climate by Design International (CDI) is the largest mobile dehumidifier systems manufacturer in North America. Our equipment is offered by the largest heavy equipment renters in the United States.

Choose from an extensive line of dehumidifiers for jobs of all sizes, with lots of options and world-class support to make sure you're on the right track.



To increase profits and build your business, you need the best. You need ARID-Dry.
